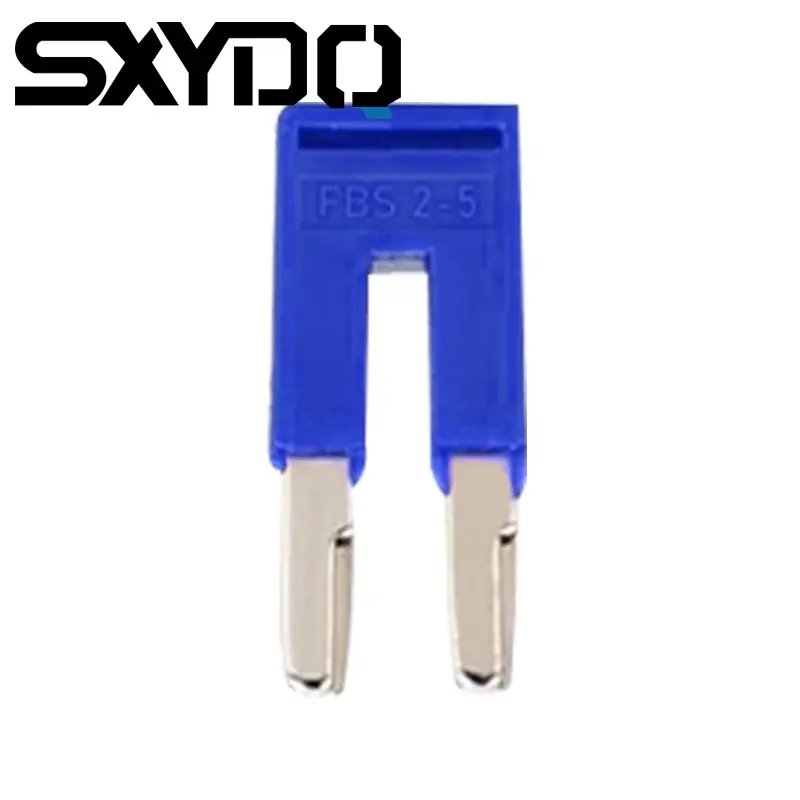

FBS 2-5 Copper Jumper Connections Contact Jumper Bar & Plugging Jumper for DIN Rail Terminal Blocks
|
Model Number |
FBS 2-5 |
|
Brand |
SXYDQ |
|
Contact Material |
Copper |
|
Connection method |
Push-in Connection |
|
Type |
DIN RAIL &accessories |
|
Rated Voltage (IEC) V / Current |
800V / 24A |
|
Conductor Size |
0.2-2.5MM² |
|
Certification |
CE/RoHS |
|

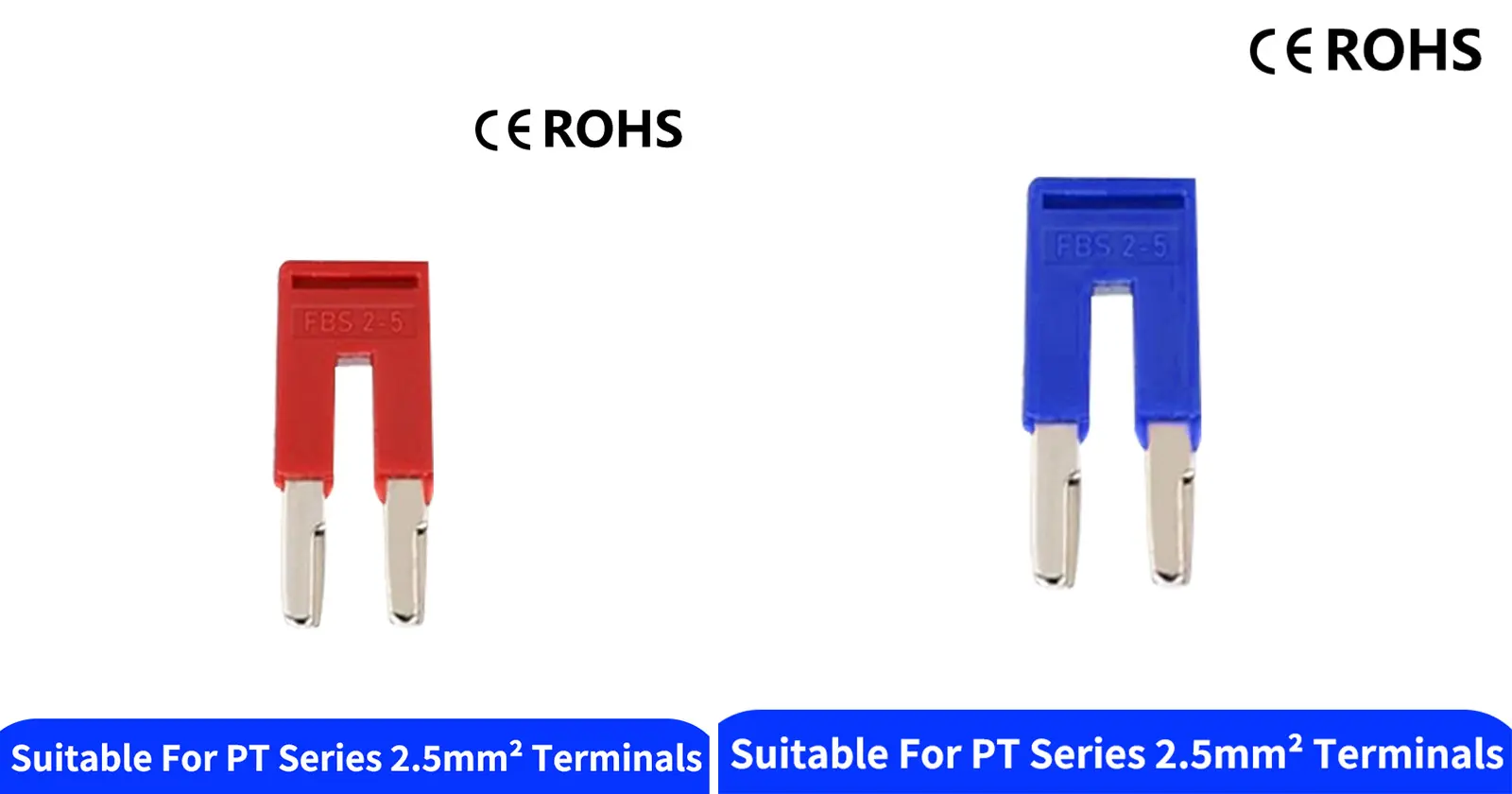

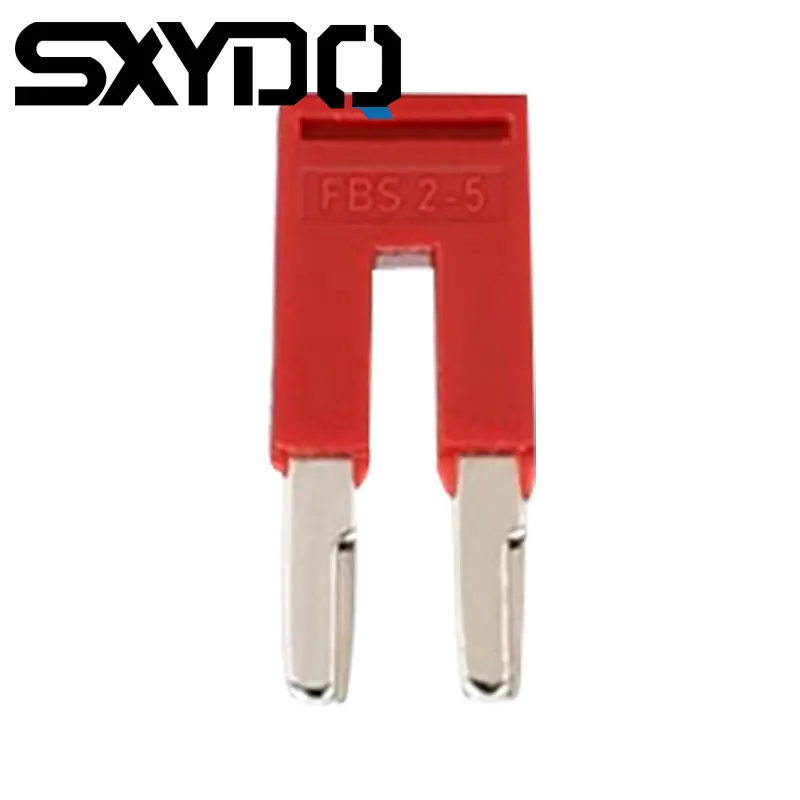

Color |
Blue,Red,and Customization support |
|
Usage |
Plug in Bridges |
FBS 2-5 Copper Jumper Connections Contact Jumper Bar & Plugging Jumper for DIN Rail Terminal Blocks
The JPT Series represents our cutting-edge Push-in Connection Terminal product line. As the industry's most advanced wiring solution, push-in connection technology not only saves engineers valuable time on complex wire termination but also significantly enhances production efficiency and market competitiveness. Designed for versatile applications, this series enables flexible installation with minimal accessories.
Wiring Steps Four Steps to Teach You
NO.1 Spring In-Line Connection Needs
NO.2 Double-Channel Bridge Well Easily Realize Potential Distribution
NO.3 Standardized Borehole Measurement The Loop Testls Convenient And Quick.
NO.4 Unplug The Wire And Complete The Outline
Operation Instructions
1.Simply align the plug-in bridge connector with the terminal and insert it downward.
2.Using a screwdriver, press upward firmly at the product's indentation to release.
Product Advantages:
01. Flame-Retardant PA66 Housing
·Made of premium PA66 material with excellent insulation properties
·Thick-walled design ensures anti-slip and shock-proof safety
02. Multiple Colors & Complete Specifications
·Available in 4/5/6/8 poles with 2-10 positions
·Custom configurations welcome
03. Adjustable Length
·Pre-scored break points allow easy modification of position count as needed
|
Fixed bridge Model No. |
Terminal Model No. |
|
FBS 10-4 |
JPT 1.5 |
|
FBS 2-5 |
JPT 2.5 |
|
FBS 3-5 |
JPT 2.5-TW |
|
FBS 4-5 |
JPT 2.5-QUATTRO |
|
FBS 5-5 |
JPTTB 2.5 |
|
FBS 10-5 |
JPT 2.5-3L |
|
FBS 2-6 |
JPT 4 |
|
FBS 3-6 |
JPT 4-TW |
|
FBS 4-6 |
JPT 4-QUATTRO |
|
FBS 5-6 |
JPTTB 4 |
|
FBS 10-6 |
JPT 6 |
|
FBS 2-8, FBS 3-8, FBS 4-8, FBS 5-8, FBS 10-8, |
JPT 10 |
|
FBS 2-10, FBS 3-10, FBS 4-10, FBS 5-10, FBS 10-10, |
JPT 1.5 |
|
