How to select the right product:

First, we need to confirm the wire size, as the wire size determines our product model. Below are the US standard wire sizes corresponding to our models.

Since some customers are new to our products, they may not know how to choose the right one. At SXYDQ-electric.com, we provide the most professional service and will answer any questions you may have.

Today, we need to explain our two product series to our customers.

The first one is called UK terminal block, （Screw-type terminal blocks which means that the terminals are connected using screws.）

This Terminal Block Connector adopts the internationally recognized screw connection method, which meets the most stringent requirements and offers a broad range of applications. It performs excellently even in the wiring of large conductor cross-sections. Constructed from engineering flame-retardant nylon PA66 and brass screws, it not only features excellent flame-retardant properties but also ensures the stability and conductivity of the connection.

In terms of installation, the JUK 2.5B comes with a universal base, allowing for easy installation on DIN Rail NS 35 rails, thus providing a convenient and efficient installation process. It can effortlessly connect two conductors. The cross-section of solid cables can reach 0.2-4mm², while that of flexible cables is 0.2-2.5mm². With a conductor size range of 24-12 AWG, a rated voltage of 800V, and a rated current of 32A, it fully meets the demands of various electrical connection scenarios.​

For electrical potential distribution, the JUK 2.5B can utilize a fixed bridge at the center of the terminal or an insertable bridge in the clamping space, offering flexibility and efficiency. Additionally, it is equipped with a comprehensive set of accessories, including end covers, end stoppers, partition plates, marker strips, fixed bridges, and insertable bridges, providing users with all-round support during use.

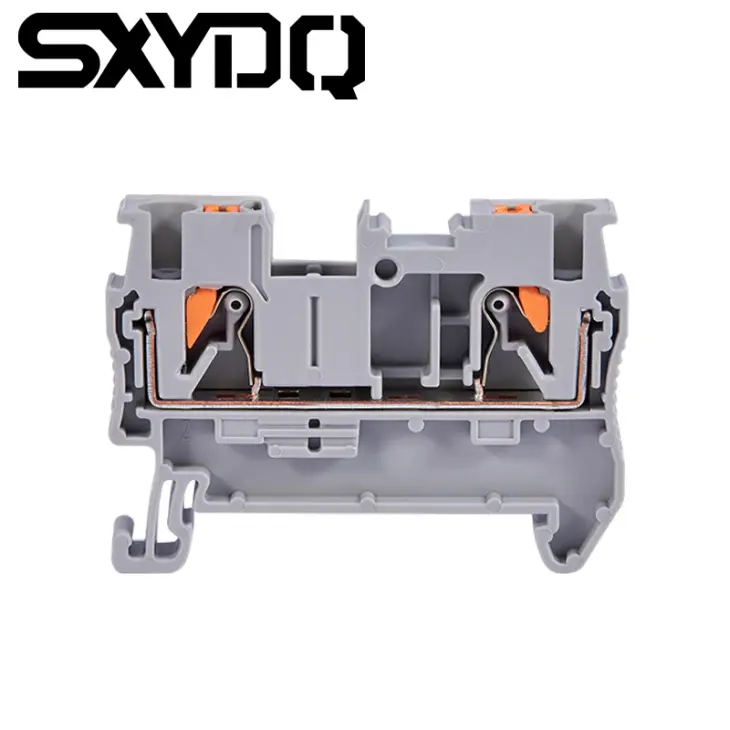

The second one is called PT terminal block, （Push in terminal blocks which means that no tools are required to connect the wires.）

Push in terminal block connection is a tool-free connection this allows operators to easily remove and reinsert wire without the need for any type of tool foe the wire that's used on a PIT or push in terminal connection. We to make sure that we're using a ferrule . The ferrule allows for the connection to work properly and seat properly .We simply take the wire with a ferrule connected .We insert it into the push in terminal make sure it is seated fully and there we have a fully and there we have fully seated safe secure connect to remove this connection we simply take your precision screwdriver push down on the spring which is allows us to remove the wire very simply .
