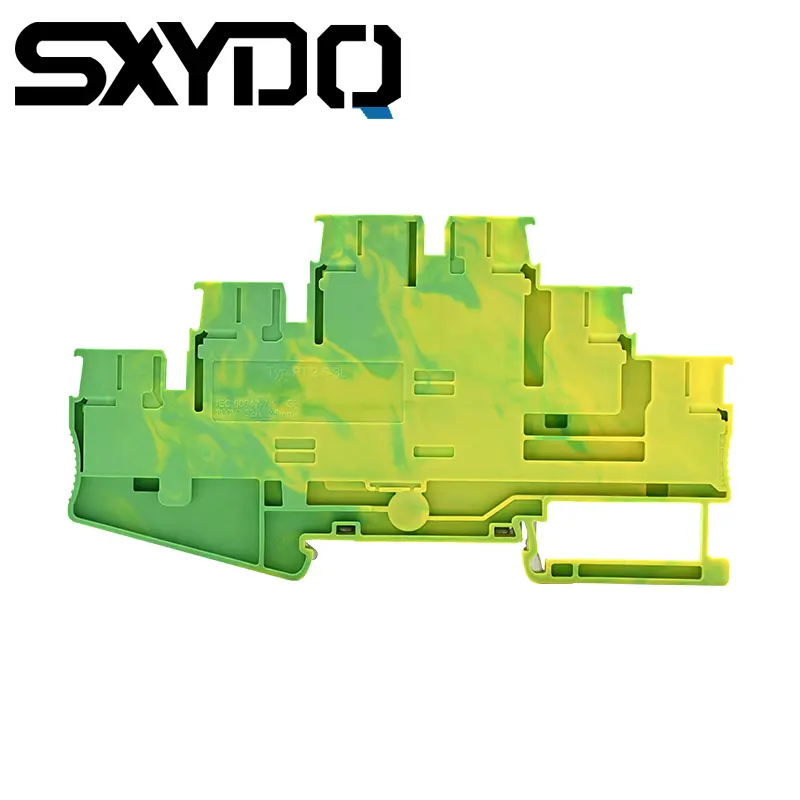

PT 2.5-3L-PE Push-in Ground Terminal Connector Triple Level Terminal Blocks
|
Model Number |
JPT2.5-3L-PE |
|
Brand |
SXYDQ |
|

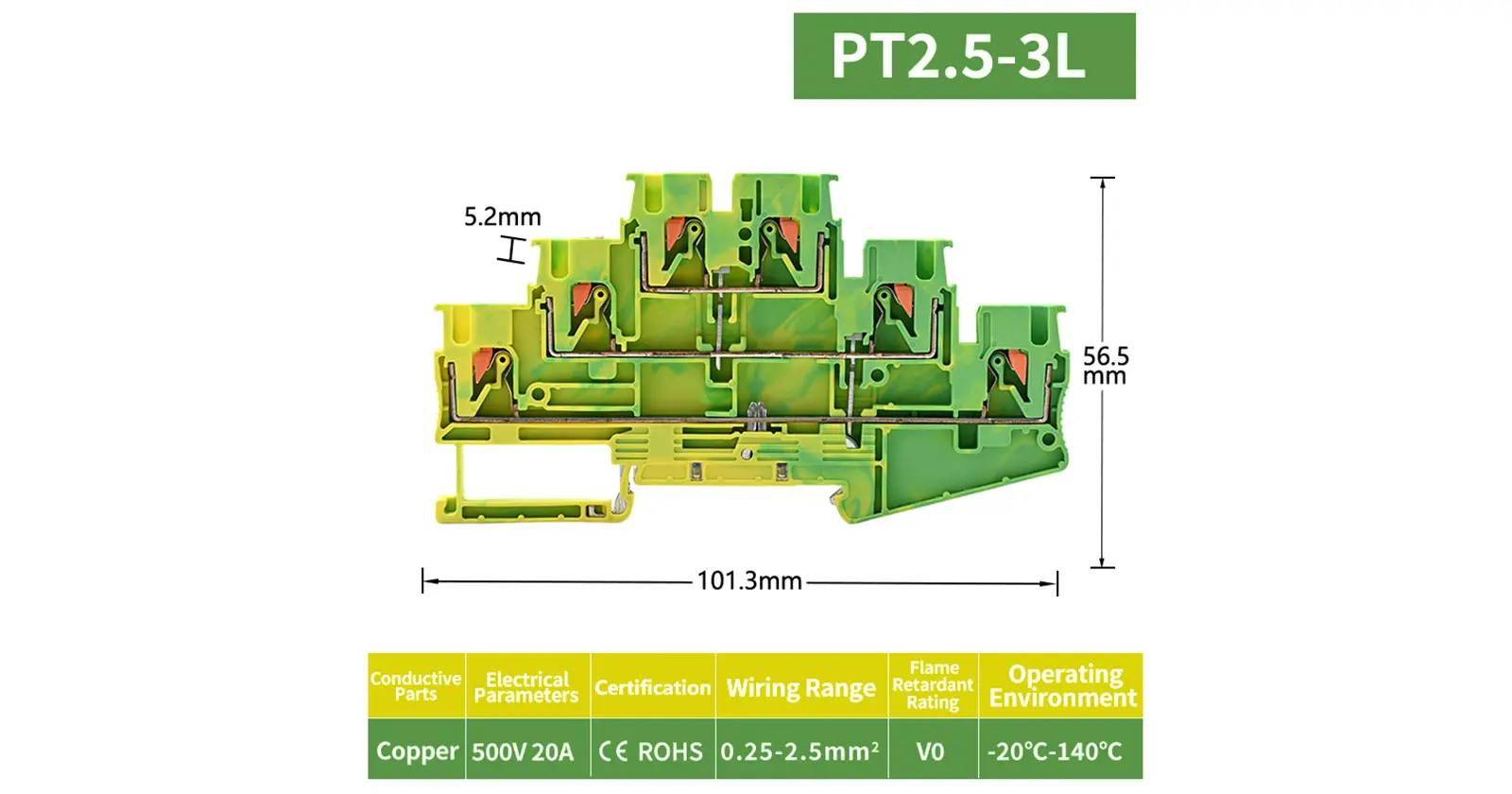

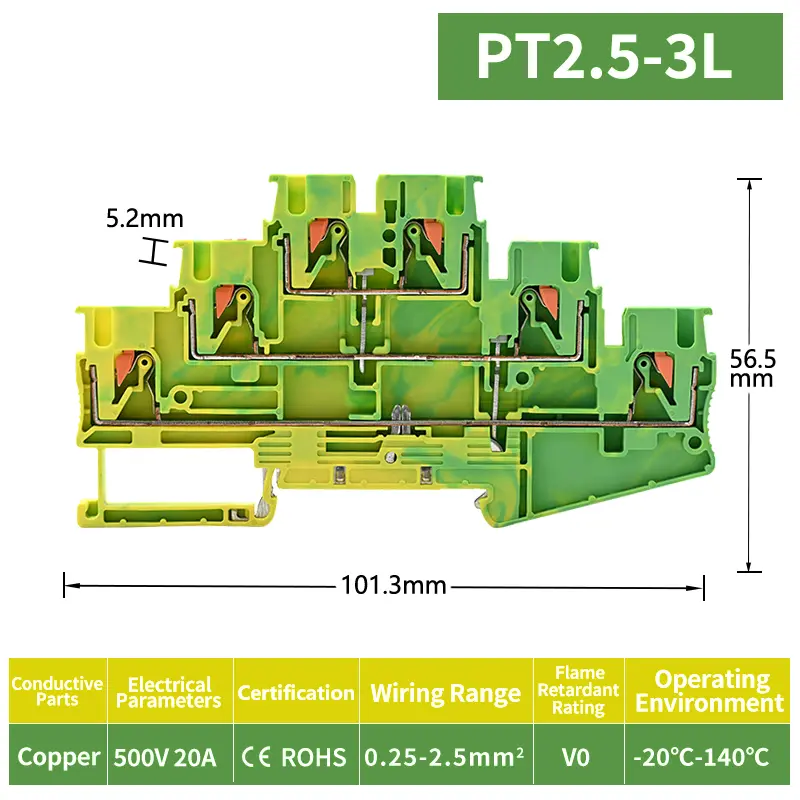

Length/Height/Thicknesses(mm) |
5.2 MM * 101.3 MM * 56.5 MM |
|
Connection method |
Push in Connection Block |
|
Material |
Copper/ Nylon PA66 |
|
Rated Voltage (IEC) V / Current |
500V / 20A |
|
Conductor Size |
0.14-2.5MM² |
|
Certification |
CE/RoHS |
|
Color |
Yellow&green |
|
Packing Detail |
6g/pc, 100PCS/BOX |
|
Brand |
SXYDQ ,Logo can be Customised for Large Quantities |
|
Application |
Cable |
|
Wiring range |
2.5MM² - 16MM² |
|
Environmental Protection |
General |
|
Connection Mode |
Push-Pull Connection |
|
Contact Termination Form |
Pressure Welding |
|
Type |
Sealed Electric Connector |
|
Production Process |
Injection Molding |
|
Interface Type |
AC/DC |
|
Shape |
Rectangle |
|
American Wire Gauge |
AWG 26-12 |
|
Stripping Length |
8MM-10MM |
JPT 2.5-3L-PE Push-in Ground Triple Level Terminal Blocks
Push-in terminal blocks feature front-side connection, saving space and facilitating wiring.
These tool-free terminal blocks utilize a direct push-in connection, reducing the required insertion force by 50% when connecting solid or ferruled conductors.
Suitable for a wide range of applications.
A. 50% lower insertion force
B. Made of flame-retardant nylon PA 66 and copper material
C. Tin-plated surface ensures extremely low contact resistance and excellent air tightness.
D. Compatible with standard accessories from the CLIPLINE complete system.
|
Selling Units |
Box/boxes Bag/Bags |
|
Package Type |
Carton |
|
Daily Output |
10000000000 |
|
Transportation |
Ocean,Land,Air |
|
Place of Origin |
China,Guangdong |
|
Supply Ability |
999999999 |
|
Certificate |
CE, RoHs |
|
HS Code |
8536909000 |
|
Port |
ShenZhen,Guangzhou,Shanghai,Ningbo |
|
Payment Type |
L/C,T/T,D/P,Paypal,Western Union |
|
Incoterm |
EXW,FOB,CFR,CIF,FCA,CPT,CIP,DDP,DAP |
-
PT2.5-3L-PE -

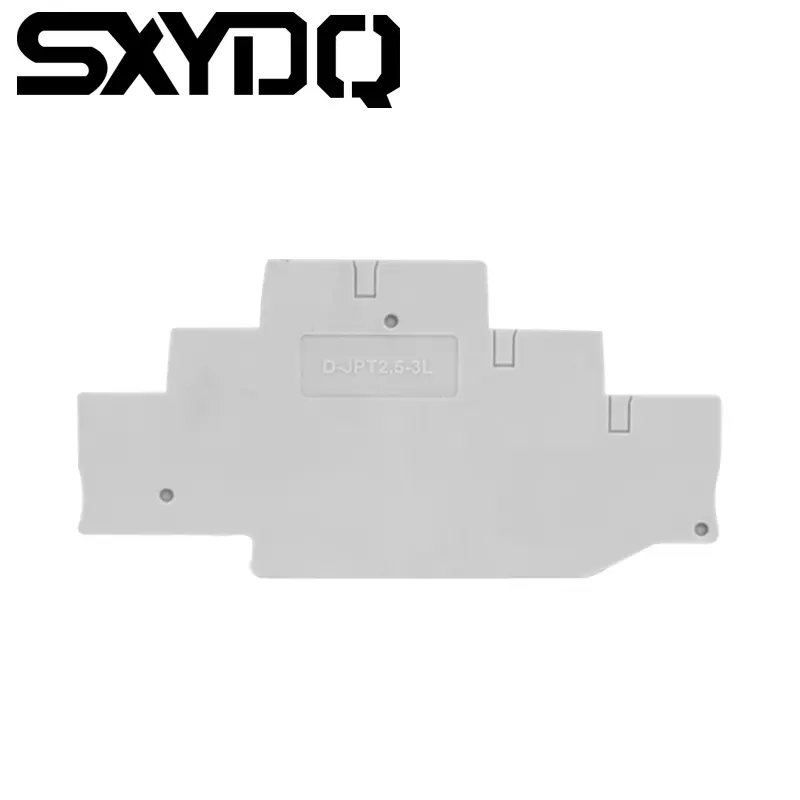

D-PT2.5-3L -
FBS10-5R -

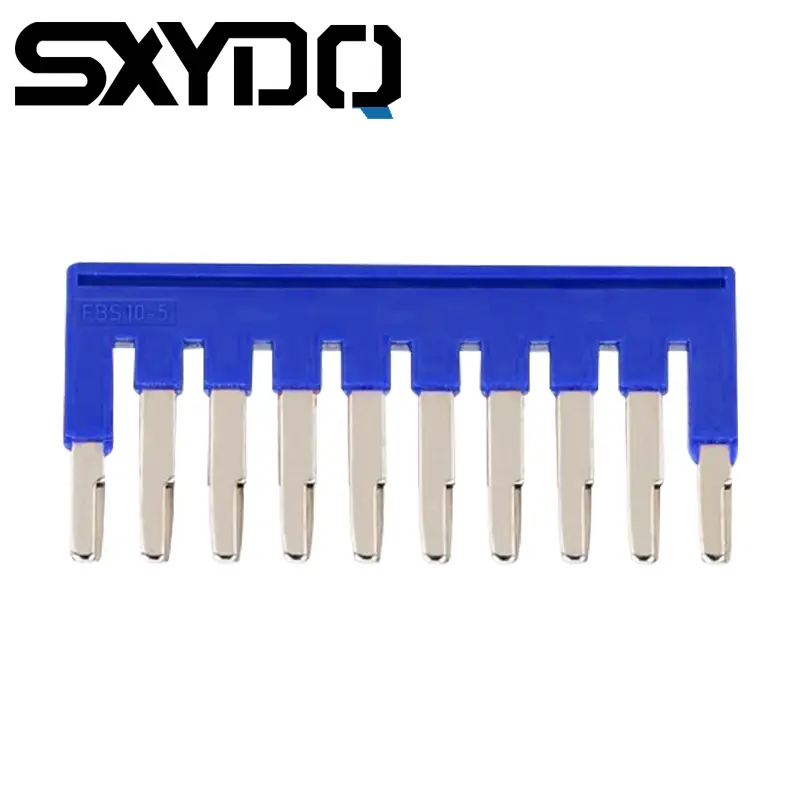

FBS10-5B
